RF Feed Spiral Electrode

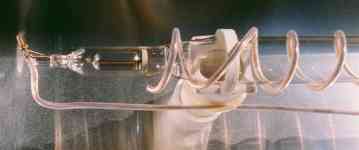

A view showing the outer end of the RF feed wire spiral overlapping the end of the tube elctrode.  Note that the spiral wire does not "squeeze down" around the electrode area.  Also shown is the trigger coil wire connecting to the tube electrode.  You can see the "tie-wrap" fastening the trigger coil wire against the PVC tube support.
